Screen printing is a printing technique whereby a mesh is used to transfer ink onto a substrate, except in areas made impermeable to the ink by a blocking stencil. A blade or squeegee is moved across the screen to fill the open mesh apertures with ink, and a reverse stroke then causes the screen to touch the substrate momentarily along a line of contact. This causes the ink to wet the substrate and be pulled out of the mesh apertures as the screen springs back after the blade has passed. One color is printed at a time, so several screens can be used to produce a multicoloured image or design.

1. Used for screening and filtering under acid and alkali environmental conditions, as mud mesh in the petroleum industry, chemical fiber industry, as a screen filter, and electroplating.
2. Used in mining, petroleum, chemical, food, medicine, machinery manufacturing and other industries.
3. Used for screening and filtering under acid and alkali environmental conditions, as mud mesh in petroleum industry, as sieve in chemical and chemical fiber industry, and as pickling mesh in electroplating industry. The factory can design and produce various types of products according to user needs.

Product specification

Specification	Mesh/inch	Wire Dia.(μm)	Open area Ratio(%)	Aperture(μm)	Thickness(μm)	Calendered Thickness(μm)	Theoretical Ink(cm³/m²)
4040160	40	160	56.0	475	300-320	As order	179.1
6060120	60	120	51.3	303	230-245	As order	123.2
8080120	80	120	39.0	198	235-245	As order	92.9
808090	80	90	52.0	228	175-180	As order	103.0
808050	80	50	71.0	268	95-100	As order	78.0
100100100	100	100	36.8	154	195-205	As order	77.2
12012080	120	80	39.0	132	155-165	As order	65.8
15015060	150	60	41.7	109	115-124	As order	50.0
16516535	165	35	60.0	119	70-75	As order	48.0
16516545	165	45	50.1	109	88-93	As order	45.1
16516550	165	50	45.6	104	97-105	As order	45.6
18018045	180	45	46.4	96	88-93	As order	41.5
18018050	180	50	42.0	91	98-104	As order	41.7
20020040	200	40	46.9	87	82-84	As order	43.0
20020050	200	50	37.0	77	98-103	As order	42.0
23023035	230	35	46.7	75	72-76	50-67	37.0
25025040	250	40	36.8	62	86-86	50-80	34.0
25025030	250	30	49.7	72	64-68	40-58	30.0
25025035	250	35	43.0	67	76-78	57-70	32.0

Product description

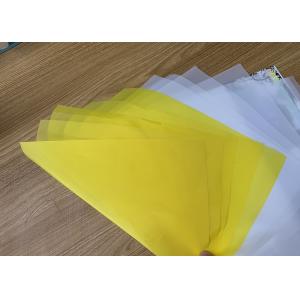

100% monofilament polyester printing mesh
Weave Style	Plain Weave
Martiral	100% ployester
Monofilament Style	Yes
Width	0.6m-3.65m
Mesh Count	25-400 mesh/inch
Thread Diameter	250-31 micron
Mesh Opening	700-25 micron

Product Application

1.Costume screen printing: T-shirt screen printing, Fashion screen printing, Sportswear screen printing, Swimwear screen printing, etc.

Luggage, Shoes and Hats screen printing: Computer Bag screen printing, Handbags screen printing, Shopping bags screen printing, Luggage screen printing, Wallets screen printing, composite packaging materials screen printing, Canvas Shoes screen printing, hat/cap screen printing, etc.

2.Home Textiles screen printing: Scarves screen printing, Pillow screen printing, Tablecloths screen printing, Sleeping Bags screen printing, Bedclothes screen printing, Curtains screen printing, Seat screen printing, etc.

3.Advertising Gifts screen printing: Mouse Pad screen printing, Textile Slippers screen printing, Coasters screen printing, Bar Cushion screen printing, Paintings screen printing, Flags screen printing, Umbrella screen printing, etc.
